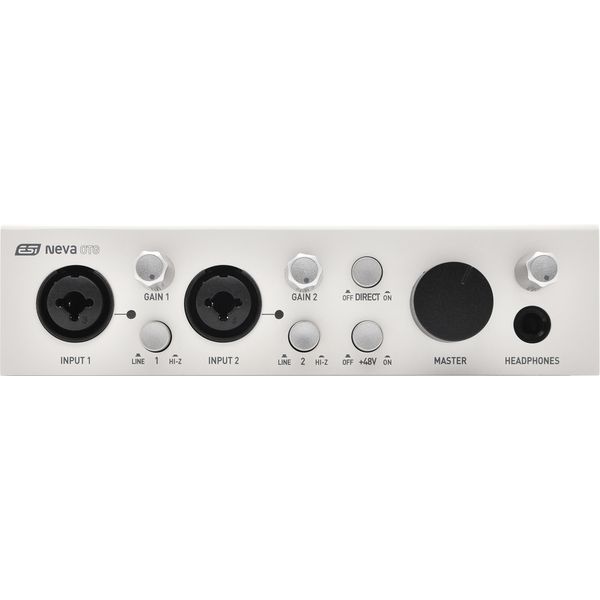

ESI Neva OTG

USB-C Audio Interface

24 bit / 192 kHz digital converter
+48 V phantom power switchable
Two mic/line inputs: XLR / 6.3 mm jack combo balanced
AD converter with 97 dB(a) dynamic range / DA converter with 107 dB(a) dynamic range
Two line outputs: 6.3 mm jack balanced
Stereo headphone output: 6.3 mm jack
Loopback function
Two USB-C ports
USB bus-powered
Connection to mobile devices (e.g. iPhone, iPad, other smartphones or tablets) via the secondary USB-C OTG connection (USB 2.0 audio interface) or via TRRS analogue audio cable
EWDM driver for Windows 10 / 11 with ASIO 2.0, MME, WDM and DirectSound support
Supports OS X / macOS (10.9 and higher) via the native CoreAudio USB driver from Apple
Class compliant
Dimensions (W x D x H): 170 x 120 x 44 mm
Weight: 450 g
Includes USB cable (type C to A), Cubasis LE3, Wavelab LE10 and Bitwig Studio 8-Track

Tillgänglig sedan Mars 2025

Artikelnummer 613829

försäljningsenhet 1 Styck

Recording / Playback Channels 2x2

Number of Mic Inputs 2

Number of Line Inputs 2

Instrument Inputs 2

Number of Line Outs 2

Headphone Outs 1

Phantom power Yes

Number of S/PDIF Connectors 0

Number of ADAT Connectors 0

Numer of AES/EBU Connectors 0

Number of MADI Connectors 0

Ethernet 0

Other Connectors OTG

MIDI interface No

Word Clock No

Max. sample rate (kHz) 192 kHz

Max. resolution in bit 24 bit

USB Bus-Powered Yes

Incl. power supply No

USB Version 2.0

Width in mm 137 mm

Depth in mm 90 mm

Height in mm 45 mm

Connection Format 2x USB port Type C

Zero latency monitoring Yes
